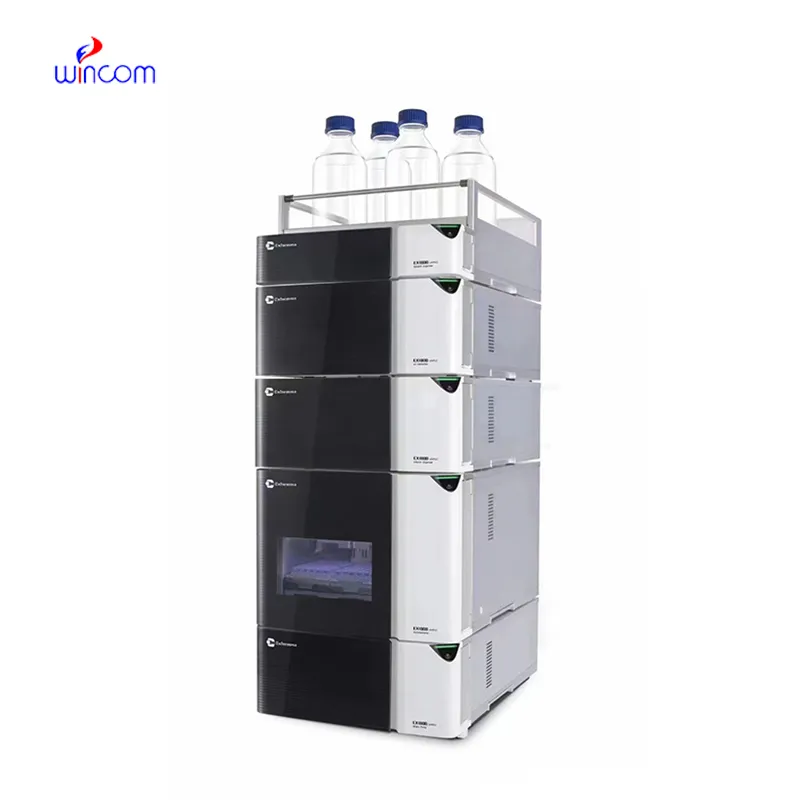

Ultra High Performance Liquid Chromatography System

Ultra High Performance Liquid Chromatography System HPLC LC-EX1800
Main Configuration Quaternary System
Quaternary Pump EX1800 QLPC
Infusion System:Linear motor digital-driven pump
Flow range:0.001-10mL/min,n0.001mL/min increments
Maximum operating pressure:70MPa(corresponding 10150psi)
Flow precision:≤0.06%RSD ;Flow accuracy:≤±0.3%
Compression compensation:Automatic,continuous,selectable solvent type
Post-column cleaning:Automatic post-column cleaning functionwhich can control the cleaning flow rate
Gradient setting range:0-100%; Degassing chamber:480uL
UV Detector EX1800 UV
Flow cell:Volume 10.0uL; adopts cone structure
Light source:deuterium lamp;Wavelength range:190-700nm
Spectral bandwidth:8nm;Wavelength accuracy:±1nm Wavelength precision:<0.1nm Noise:≤0.25*10-5AU(static)/≤4*10-5AU(dynamic under specified test conditions) Thermostated Column compartment EX1800 CO Temperature control range:5℃-80℃ above room temperature;ceramic heating module Teperature stability:±0.1℃;Temperature accuracy:±0.5℃ up to two pre-post preheaters Column capacity: up to 4x30cm columns(ultra-efficient columns 8x5cm,10cm) Optional:column switching valve Temperature control method: microcomputer controlled active air circulation Manual injector 7725i Chromatographic Data-processing Workstation EX-Clarity C50 Chromatographic column C18 150mm+C8 150mm Solvent tray EX1800 TR This liquid chromatograph has a wide range of applications, and different detectors and pumps can be selected and quoted according to customer requirements. such as: PDA Detector;FL Detector; ELS Detector;RI Detector. Optional Arcus AUTOSAMPLER;
