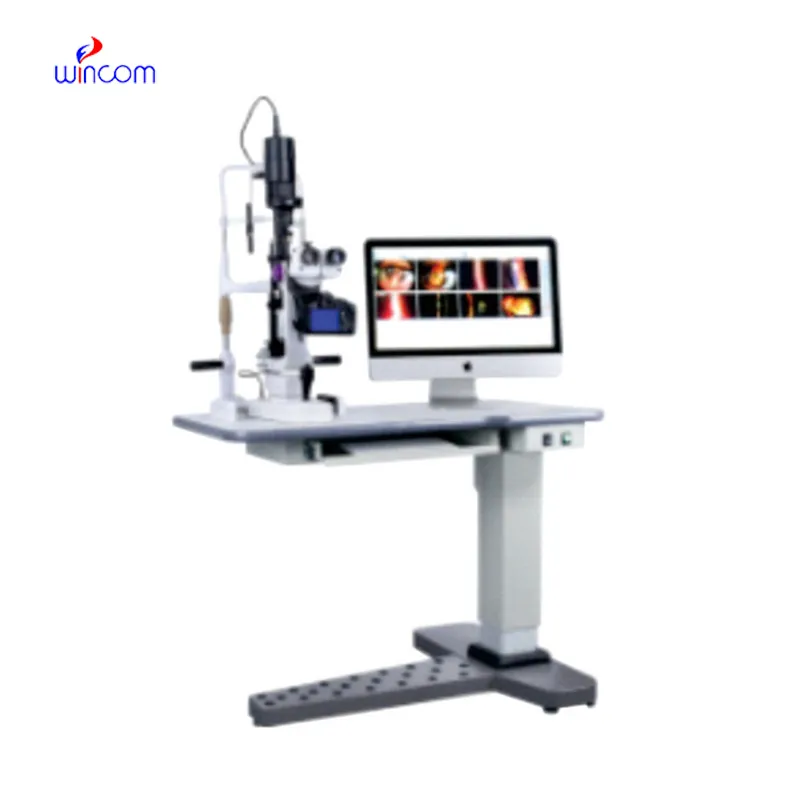

Slit Lamp Microscope SLM-88TD

Slit Lamp Microscope

Art.No.: SLM-88TD
Microscope: Microscope Type Galilean stereoscopic microscope
Magnification: selection 3 steps by drum rotation
Eyepiece: 12.5X
Magnification: Ratio(Field of view) 10X(22.5mm), 16X(14mm), 25X(8.8mm)
Pupillary Adjustment: 50mm ~ 82mm
Diopter Adjustment: + – 7D
Base: Side Shift:110mm Depth Shift :90mm Height Shift :30mm
Chin rest: Height Shift:80mm Fixation Target:red LED
Illumination system: Slit Width 0 ~ 14mm Continuous ( at 14mm , slit becomes a circle )
Slit Height: 0 ~ 14mm Continuous
Slit Angle: 0° ~ 180° adjustable
Slit Inclination: 5º, 10º, 15º ,20º
Diameter of Light Spot: Ø14mm, Ø10mm , Ø5mm, Ø3mm, Ø2mm, Ø1mm, Ø0.2mm and 1 ~ 14mm Continuous
Filter: Heat Absorption , Grey ,Red-Free , Cobalt Blue
Illumination Bulb: 12v 50w halogen lamp
