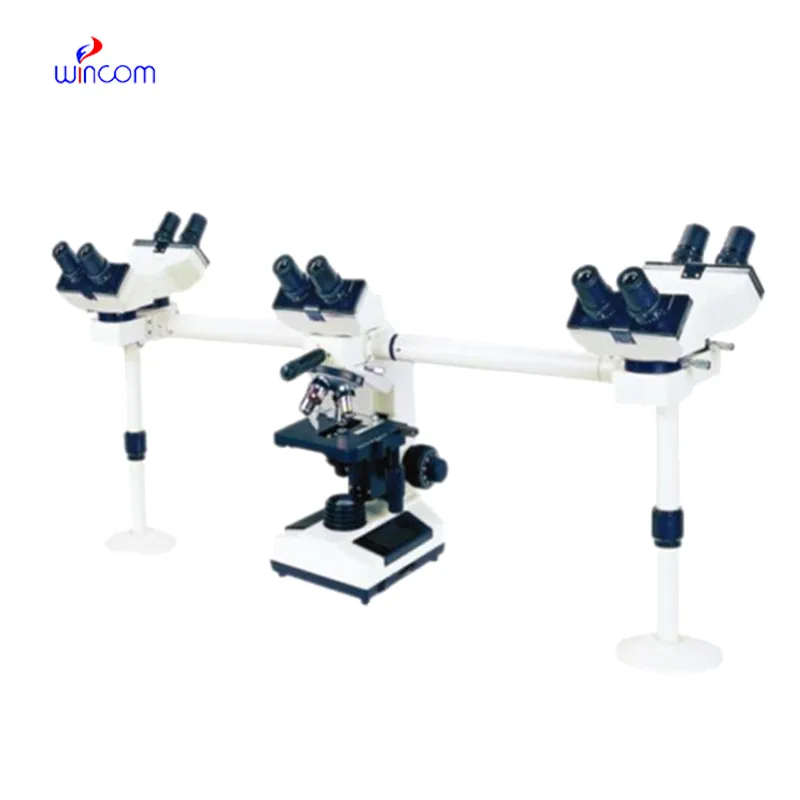

Multi-viewing Microscope MCS-M510

MULTI-VIEWING MICROSCOPE

Art.No.: MCS-M510
Viewing head: Sliding binocular head,inclined at 45° 5PCS
Eyepiece: WF10X wide field eyepiece 10PCS
Nosepiece: Quadruple nosepiece
Objective: Achromatic objective 4X,10X,40X 100X
Condenser: Abbe condenser NA1.25
Focusing System: Coaxial coarse and fine adjustment,fine division 0.002mm, coarse stroke 37.7mm per rotation,fine stroke 0.2mm per rotation,moving range 28mm
Stage: Duble layers mechanical stage 140X140mm/75X50mm
Illumination: S-LED illumination,brightness adjustable
Pointer: Green LED pointer,brightness adjustable
