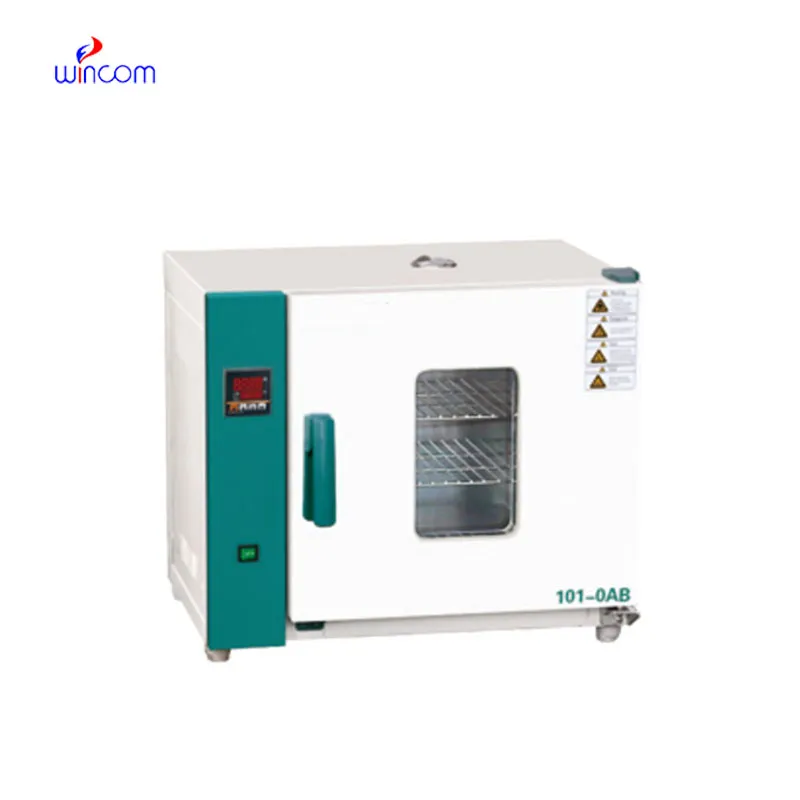

Horizontal Drying Oven 101-0A

Horizontal Drying Oven
Art. No. 101-0A/101-0AB 101-1A/101-1AB 101-2A/101-2AB 101-3A/101-3AB
202-0A/202-0AB 202-1A/202-1AB 202-2A/202-2AB 202-3A/202-3AB
Cycle Mode 101 means Forced convection;202 means Natural convection
Function Temp. Range RT+10-250℃
Temp. Resolution Ratio 0.1℃
Temp. Motion ±1℃
Temp. Uniformity ±2.5%
Structure Inner Chamber B model:High quality stainless steel;
without B model:High strength galvanized sheet
Outer Shell Cold rolling steel electrostatic spraying exterior
Insulation layer Compound silicate heat preservation board
Heater 101 model with Stainless steel electric heating tube;
202 model with Nickel chromium alloy heating wire
Power rating 1.2kW 1.6kW 2.3kW 3.0kW
Exhaust hole φ28mm top(with function of test hole)
Controller Temp. control mode Two temperature section PID intelligent
Temp. setting mode Touch button setting
Temp. display mode LED Digital display
Timer 0-9999min(with timing wait function)
Operation function Fixed temperature operation, timing function,auto stop.
Additional function Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory
Sensor pt100
Safety device Over temperature sound-light alarm
Specification Inner Chamber size(W*L*H)(mm) 350*350*350 450*350*450 550*450*550 600*500*750
Exterior size (W*L*H)(mm) 652*472*587 752*472*687 852*572*786 902*622*986
Volume 43L 71L 136L 225L
