FTIR Spectrometer

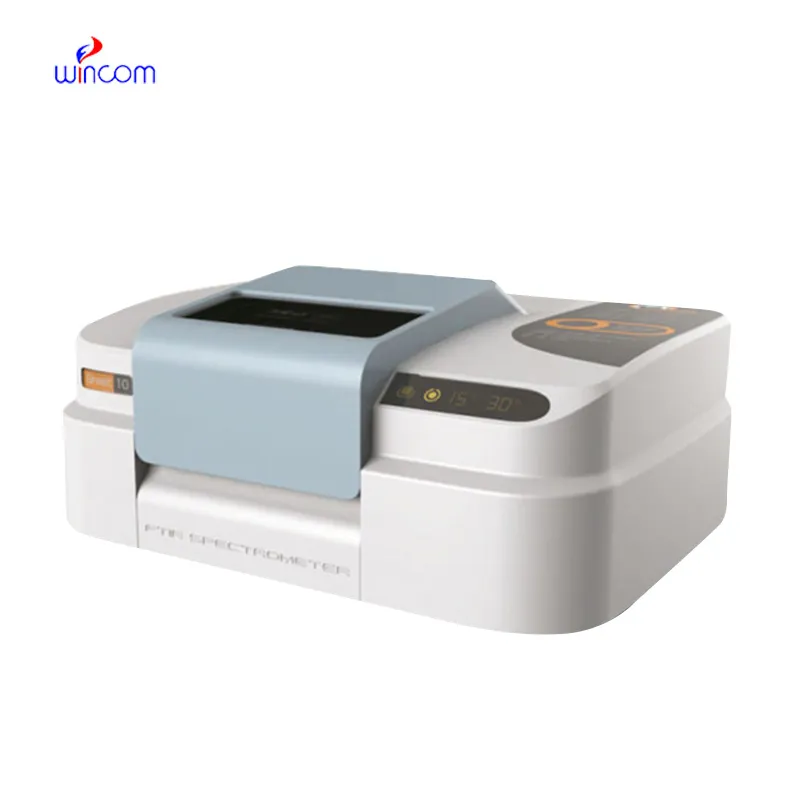

FTIR Spectrometer (main unit)
Art.No. SP-IR990
Wavenumber Range 7800 ~ 375 cm-1
Interferometer Michelson interferometer with 30 degrees of
incidence angle
100%τline tilt range Better than 0.5τ%(2200~1900cm-1 )
Resolution 1 cm-1
Wave Number Repeatability 1 cm-1
Signal Noise Ratio 30000:1 (DLATGS, resolution@4cm-1. sample and background scan for 1 min@2100cm-1)
Detector High resolution DLATGS detector with
Moisture-proof coating
Beamsplitter KBr coated with Ge(Made in USA)
Light Source Long life, air cooled IR light source(Made in USA)
Electronic System A/D converter of 24 bits at 500MHz, USB 2.0
Test Parts:(Optional) Solid Parts:PP-15 Press; PM-13 Sheet mold; MA-70 Agate mortar; KBr(50g)
Liquid Parts: Removable liquid cell; Fixed Liquid cell; Znse window (diameter 30×5)
Gas Parts: Gas Cell; ATR:ATR(Znse Crystal)
