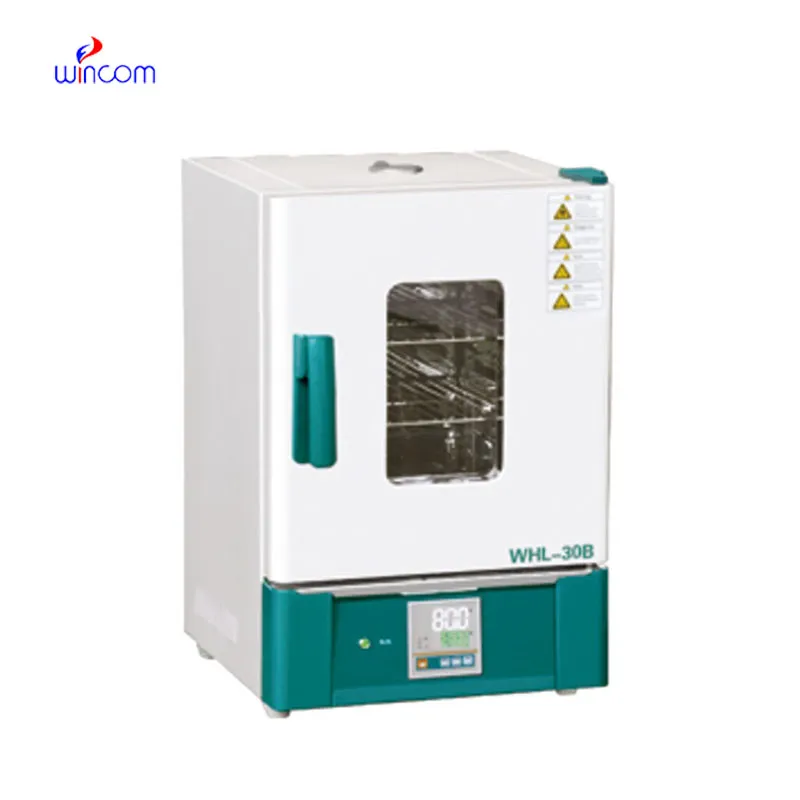

Constant Temperature Air Dry Oven WHL-30B

Constant-temperature Air Drying Oven
Art.no. WHL-30B WHL-45B WHL-65B WHL-85B WHL-125B
WHLL-30BE WHLL-45BE WHLL-65BE WHLL-85BE WHLL-125BE
Cycle Mode Natural convection
Function Temp. Range RT+10-300℃
Temp. Resolution Ratio 0.1℃
Temp. Motion ±1℃
Temp. Uniformity ±3.5%
Structure Inner Chamber Mirror Stainless Steel
Outer Shell Cold rolling steel electrostatic spraying exterior
Insulation layer Compound silicate heat preservation board
Heater Stainless steel heater
Power rating 0.8kW 1.2kW 1.6kW 2.0kW 2.5kW
Exhaust hole φ28mmtop(with function of test hole)
Controller Temp. control mode Two temperature section PID intelligent
Temp. setting mode Touch button setting
Temp. display mode B model: display on LED
BE model: display on upper LCD
Timer 0-9999min(with timing wait function)
Operation function Fixed temperature operation, timing function, auto stop.
Additional function B model: Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory
BE model: Mechanical independent temperature limiter, sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory
Sensor pt100
Specification Inner Chamber size(W*L*H)(mm) 310*310*310 350*350*350 400*360*450 450*420*450 500*450*550
Exterior size (W*L*H)(mm) 460*510*695 500*550*735 550*550*840 590*610*830 636*680*915
Volume 30L 45L 65L 85L 125L
optional accessories B model: Shelf; BE model: Shelf,RS485 interface, printer, program temperature control device, remote control, wireless SMS alarm, USB data storage
